Display
Elements
Digits Height
Digits
Count Input
Power Source
Reset
Computer Interface
Speed
Color |
i)

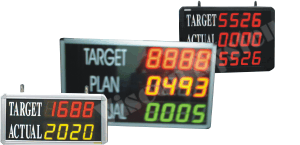

1 row shows TARGET (PLAN) output
ii) 2nd row shows ACTUAL output (Color will
change from RED to GREEN when ACTUAL
greater than TARGET)
2.3"
4 Digits
1) Edge Trigger PNP/NPN (Transistor Input)
2) Relay Contact
110 230VAC 25VA
Manual or Automatic(Programmable)
RS232 (Optional)
500p/s
1st row TARGET is RED, 2nd row ACTUAL is BICOLOR
(RED/GREEN) |
